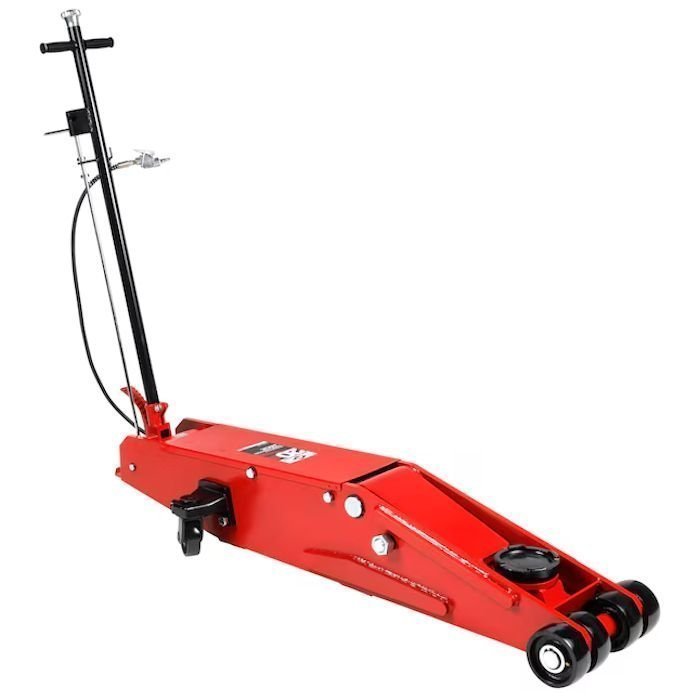

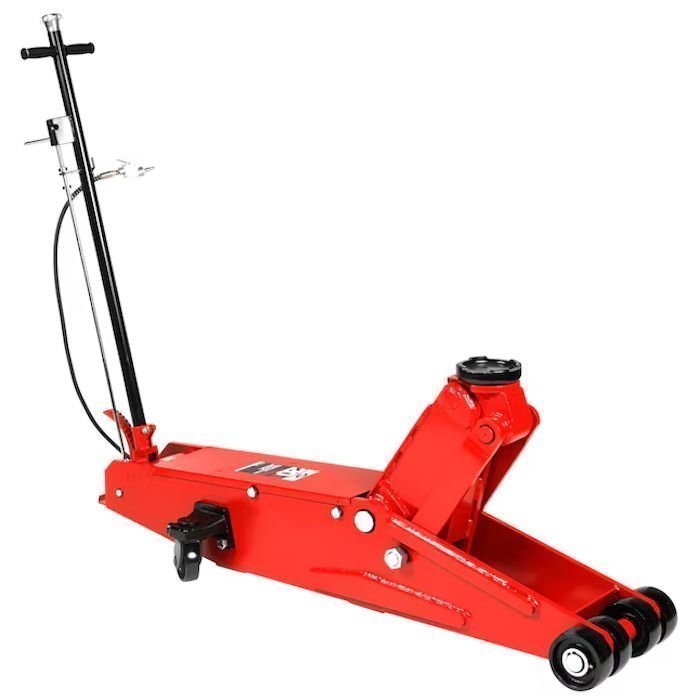

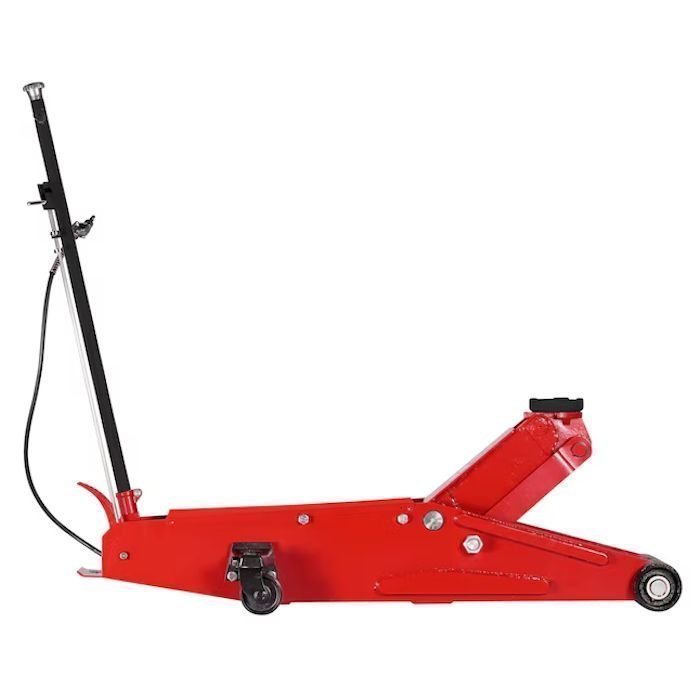

AFF 20-Ton Air Assist Hydraulic Long Chassis Jack

American Forge & Foundry’s Heavy-Duty 20-Ton Air Assist Hydraulic Long Chassis Service Jack is designed for heavy lift applications where added reach and access is also necessary. Applications include bus and truck fleets, agriculture, industrial, military bases, and job sites. Constructed with a heavy gauge steel frame for maximum strength, this jack’s super long 66″ length provides access to difficult to reach load points and is equipped with a foot operated pump for fast and efficient lifting. Handle mounted locking control lever has 3 positions for better versatility in under car positioning.

Features

• Heavy-Gauge Steel Construction Built For The Most Demanding Applications
• Ideal For Truck Tire And Repair Shops, Fleet Service, Maintenance Shops, Military Bases, And Job Sites
• Convenient Foot Pump Provides Easy Positioning

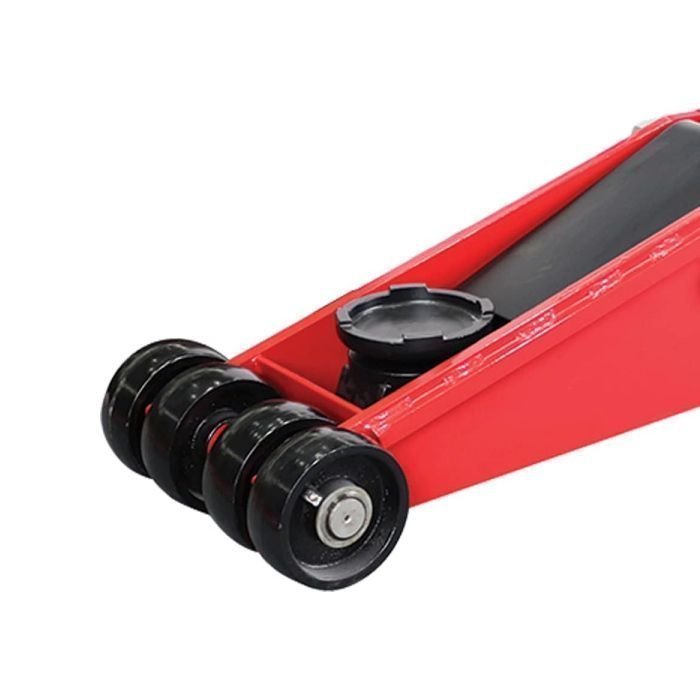

• Large Front Wheel & Rear Casters Provide Effortless Mobility
• Heavy Duty Pumps, Rams, And Cylinders Are Precision Machined And Inspected To Ensure Long Service Life And Superior Performance
• Super Long 66″ Body For Easier Lifting Of Vehicles With Long Overhangs

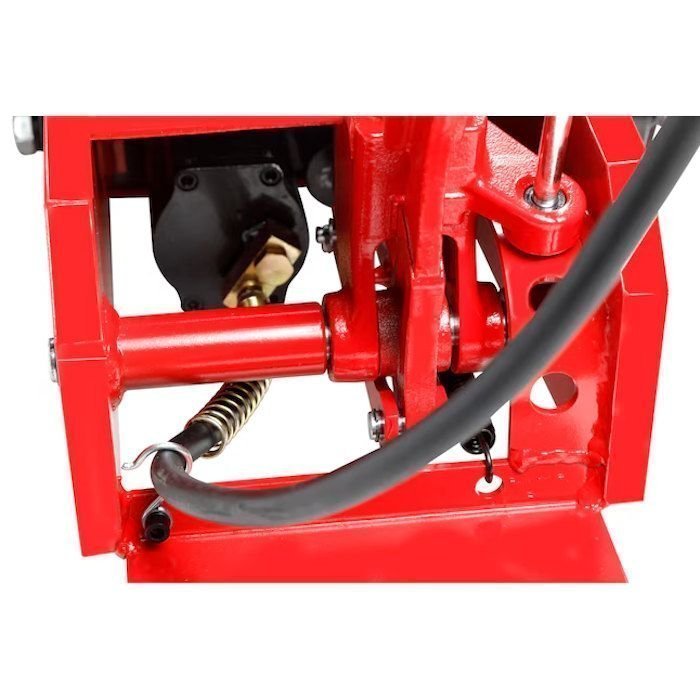

• Foot Operated Pump For Quick Lifting Efficiency
• Handle Mounted Locking Control Lever Has 3 Positions For Better Versatility In Under Car Positioning
• Automatic Overload Safety Valves For Added Safety
• Uses 2.25 Cubic Feet Per Minute Compressed Air At 100PSI

Specifications

• Capacity: 20-Ton
• Low Height: 7.50″
• High Height: 26.37″
• Length: 66.00″
• Front Width: 13.80″
• Rear Width: 19.70″
• Handle Length: 46.00″
• Saddle Size: 5.70″
• Air Requirement: 90-120 PSI
• Certification: ASME/PASE 2019
• Shipping Weight: 562 lbs.
• Warranty: (3) Year Limited
