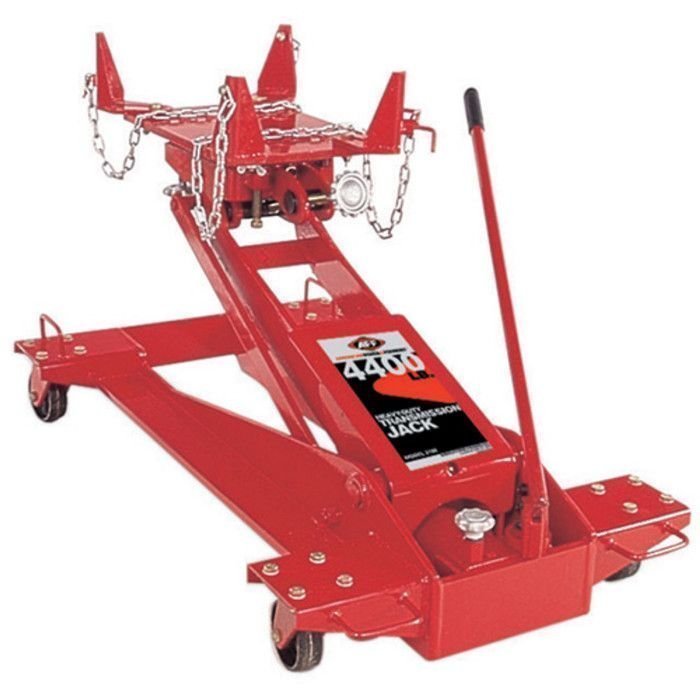

AFF Super Heavy-Duty Low-Profile Transmission Jack

This Jack is a Beast! AFF has the only super heavy-duty transmission jack with a whopping 4,400 lb. capacity. Built “forge-tough” to handle removal, transport and installation of transmissions, transfer cases or differentials on heavy-duty trucks, buses, agricultural and construction equipment.

Features

• The cradle is completely adjustable and tilts for easy alignment of transmission
• Features corner brackets that are fully adjustable
• Convenient tool trays on each side for small parts and tools when operating
• The hydraulic system is protected from overload with a safety bypass system
• The handle is 32 inches long and can pivot a full 360 degrees around the pump handle
• Strong commercial-grade swiveling casters with 4″ wheels to roll easily across concrete auto shop floors

Specifications

• Capacity: 4400 lbs.
• Low Height: 8-1/2″
• High Height: 34″
• Forward Tilt: 15 degrees
• Rear Tilt : 30 degrees
• Lift Tilt: 12 degrees
• Right Tilt: 12 degrees
• Head Width: 12″ – 18″
• Head Length: 16″ – 20″
• Width: 26″
• Length: 43″
• Shipping Weight: 374 lbs.
• Warranty: (1) Year
