- 10,000 lb. capacity
- Commercial Grade
- Adjustable Height – 11′ 11 1/8″ or 12’3″
- Asymmetric/Symmetric Arms
- Automatic Arm Restraints
- “Padded” Shut-Off Bar
- Padded Carriages
- Single Point Lock Release
- Direct-Drive Cylinders
- Powder Coat Finish
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 1,905 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
| Atlas® ATTD-PV10PX Specifications | ||
| Capacity | 10,000 LB. | |
| Overall Height | 143 1/8″ (11′ 11 1/8″) or 146 7/8″ (12′ 2 7/8″) | |
| Overall Floor Width | 137 1/2″ (11′ 5 1/2″) | |
| Outside Column to Outside Column | 125″ (10′ 5″) | |
| Maximum Lift Height (Without Adapters) | 71 7/8″ | |

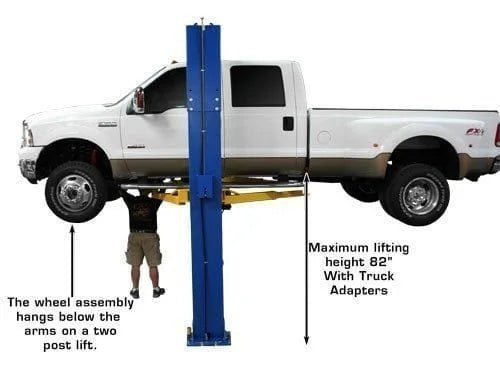

| Maximum Lift Height (With Adapters) | 82 7/8″ | |
| Minimum Arm Height | 4 3/8″ | |
| Inside Column | 110 3/8″ (9′ 2 3/8″) | |
| Drive Thru | 96″ (8′) | |
| Column Size | 7 1/2″ x 14 1/2″ | |
| Column Thickness of Steel | 6mm | |
| Base Of Lift | 17 1/2″ x 20 1/2″ | |
| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
|
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |
| Shipping Weight | 1,905 LBS. | |
| Adapter Heights | 4 Each 2″, 3″, 6″ | |
| Arm Hole/Adapter Peg Size | 1.5″ | |
| Requires a minimum of 4″ of concrete with a 3000 psi. rating | ||
