Bendpak Dual-width, 10,000 lb capacity, Clearfloor

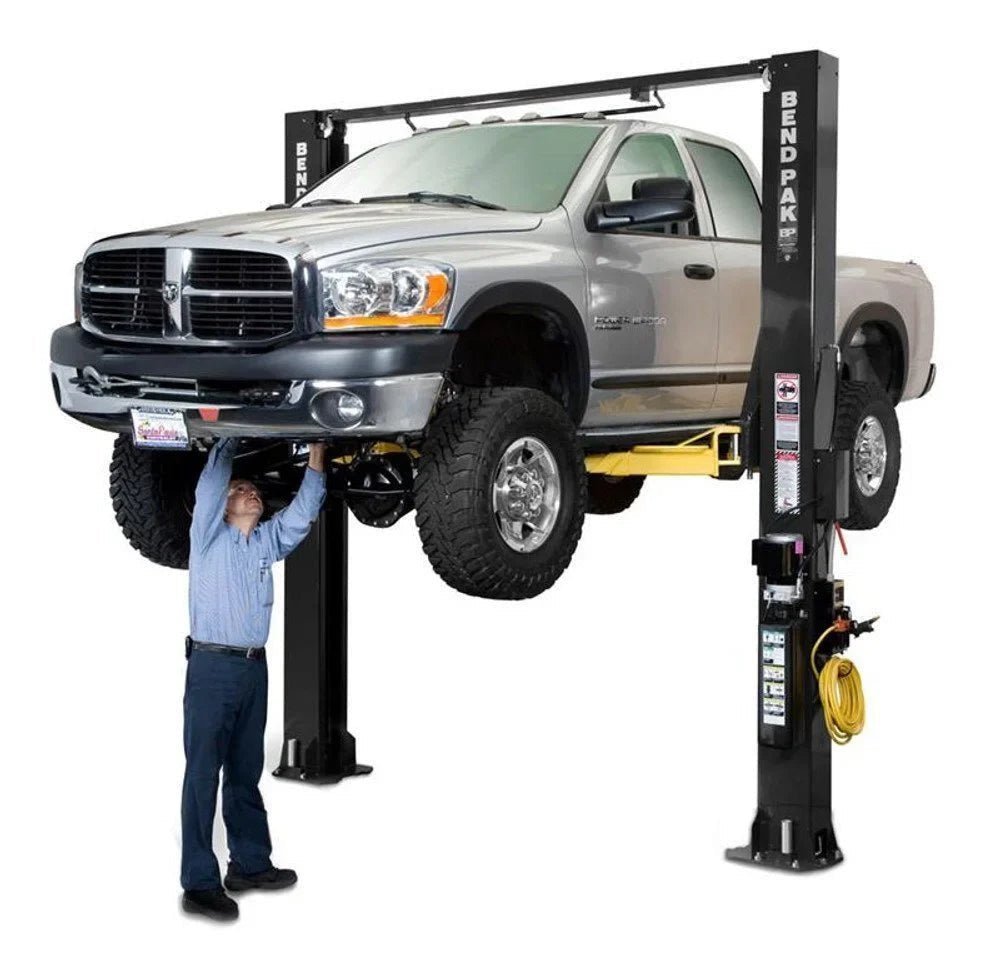

The safe and rugged XPR-10S-168 two-post lift features extended height columns for added overhead clearance and an adjustable top beam to accommodate wide or narrow installation set-ups. The adjustable width design allows you to choose the best setting for your specific space or vehicle lifting requirements. The highly sophisticated yet simple and dependable XPR-Series design requires very little service or maintenance for an overall lower cost of ownership. All BendPak’s XPR two-post models feature dual “direct-drive” low-pressure cylinders, maintenance free UHMW load bearings, single-piece columns, extra-tall lifting carriages and triple-telescoping arm configurations for increased arm positioning versatility.

• 10,000-lb lifting capacity
• CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
• Bolt-on 24″ column extensions provide added overhead clearance
• Expandable top beam accommodates wide or narrow configurations
• Padded overhead safety shutoff bar
• Single-piece columns
• Drop-end arms provide a lower pad height
• Dual hydraulic direct-drive cylinders
• Oversized 53″ tall carriage for superior strength and durability
• Electric / hydraulic power system
• Large, 17″ x 19″ A36 steel base plate
• Self-lubricating dura-glide UHMW polyethylene bearing system
• Single-point safety release
• Safety locks in each column spaced every 3″
• Automatic arm restraints
• Heavy-duty 1/2″ aircraft-quality equalizer cables
• Oversized cable sheave diameter reduces cable fatigue
• 4-piece 63 mm stackable adapter set comes standard
• Triple-telescoping arms
• Versatile drop-in contact pads with stackable adapters
• ALI Approved.
