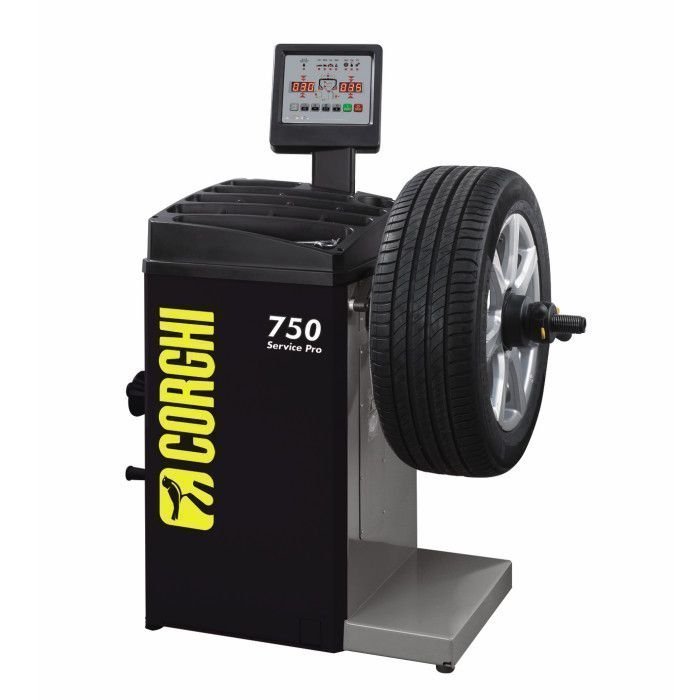

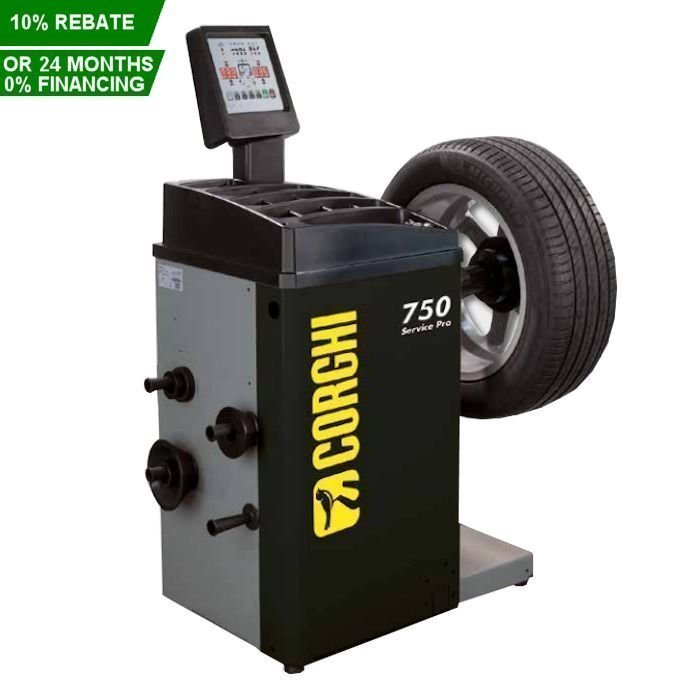

Corghi 750 Service Pro Wheel Balancer
Digital display wheel balancer completely automatic cycle and software compatible with all types of steel and light alloy wheels for passenger cars, off-road vehicles, light commercial vehicles, motorcycles and scooters.
Display and Weight Tray Holder
Modern and practical high brightness digital display. Ergonomic and spacious tray in highly resilient material for counterweights and work accessories.
Wheel Data Acquisition
Electronic acquisition of distance and wheel diameter up to 26″ with integrated FSP – SMART ARM function that automatically activates the balancing programs avoiding the use of the keyboard. The machine works according to the operator’s preferences. The adhesive counterweights can be positioned with three different methods:
- manually at 12 o’clock or at 6 o’clock (standard method)
- assisted with weight holder clip
- assisted with laser pointer at 6 o’clock (optional, figure at the side)
The integrated LED illuminator, included in the LASER & LED optional KIT, illuminates the work area to facilitate rim cleaning and application of the counterweights. Quick counterweight application, Accurate wheel balancing, Maximum visibility, and Ergonomics.
Hidden Weight
Keeps rims looking great by dividing the external side balancing adhesive weight into two equivalent weights applied in hidden locations behind the spokes.
Opt Flash
Minimizes road noise by allowing the operator to alter the position of the tyre on the rim in order to optimise quietness.
Features and Specs
Features
- Modern Practical High Broghtness Digital Display
- Ergonomic Spacious Weight Holder Tray
- Electronic Wheel Data Acquisition
- Smart Arm FSP Wheel Size Detection
- LED Illuminator & Laser
- Electronic Rim Width Detector
- Autobrake Automatic End-Cycle Stop
- Hidden Weight Program
- Opt Flash for Ideal Mounting Position
Specifications
- Rim Diameter: 10″ – 26″ (Automatic) – 1″ – 35″
- Rim Width: 1.5″ – 20″
- Max Tire Width: 22.8″
- Max Tire Diameter: 44″ (1118 mm)
- Max Wheel Wight: 154 lbs. (70 kg)
- Power Supply Voltage: 115/230V 1Ph 50/60Hz
- Motor Power: 250 W
- Rotation Speed: 150 RPM
- Dimensions: 50″ x 67″ x 42.9″ (1270 x 1704 x 1089 mm)
- Machine Weight: 280 lbs. (127 kg)
- Warranty: (3) Years Parts and (1) Year Labor
Corghi USA Limited Warranty Statement
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within (7) days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.
This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).
Corghi machines are warranted to be free of defects as follows:
Tire Changers:
A2030, A2024TI, 2024LL, A9824, A9824LL, A9830, A9222, Service Pro 124, Service Pro 324, BC200S, A2002 – (3) years parts and (1) year labor. Additional Transmission Warranty Models: A9222 – (5) years parts only. A2030, A2024TI, 2024LL, A9824, A9824LL, A9830 – (10) years parts only. AM50, AM500, AM5000, Master J, Master Code, Master28 – (3) years parts and (1) year labor. HD700, HD1300, HD1400, Monster TT, HD1800, Service Pro 440, Service Pro 426 – (3) years parts and (1) year labor. NOTE: Rubber pads, air lines, gauges, mount/demount heads, and swabs – (90) day warranty.
Wheel Balancers:
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9780, EM9980C, ET1450, ET88 – (3) years parts and (1) year labor.
Alignment Machines and Specialty Equipment:
(3) years parts and (1) year labor.
Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner’s lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.
