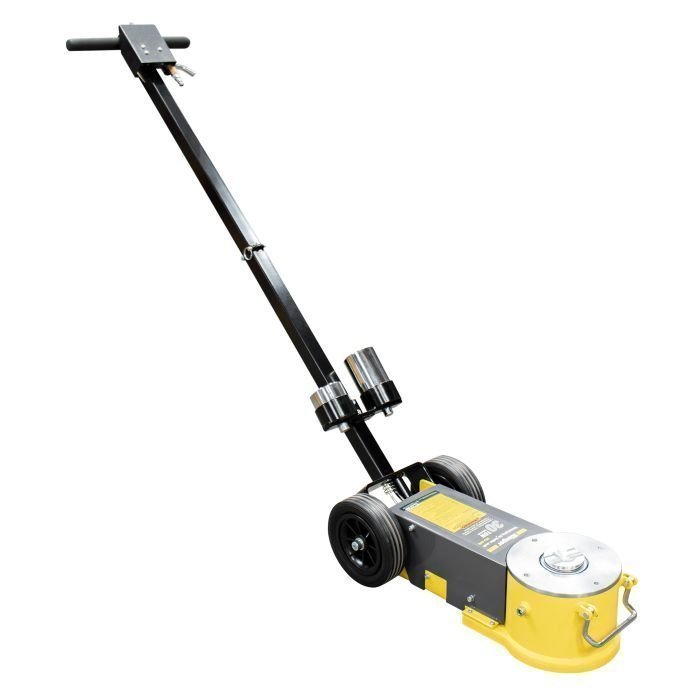

Ranger 30-Ton Telescoping Air Bottle Jack

The true king of rolling floor jacks, the Ranger rules the garage with its mighty 60,000-lb. lifting capacity. Simply hook it up to a shop air line and experience total ease of use and incredible safety when lifting five-axle semis and other heavy-duty equipment.

Features

• 60,000 lbs. Lifting Capacity
• Designed For Heavy Commercial Use
• Air-Hydraulic Operation
• Lowered Profile For Low Ground-Clearance Vehicles
• Hardened Alloy-Plated Telescoping Ram For Maximum Durability
• Heavy-Duty Steel Saddle
• Large Rubber Wheels For Easy Maneuverability
• Compact Design Fits Easily Between Tandem Wheels
• Dead-Man Controls For Safe Operation
• Long “T” Handle For Easy Positioning
• T Handle Can Be Locked In Three Different Positions
• Double-Sealed For Longer Service Life
• Air Valve With Integrated Filter
• Heavy-Duty Air Motor Provides Maximum Power
• Sealed Hydraulic Unit Prevents Contamination
• Built-In Safety Valve Prevents Jack From Being Used Beyond Its Rated Capacity
• Additional Lifting Saddles Included

Specifications

• Lifting Capacity – 1st Stage: 60,000 lbs. (27,216 kg)
• Lifting Capacity – 2nd Stage: 30,000 lbs. (13,607 kg)
• Lowered Height: 6.5″ (150 mm)
• Raised Height: 6″ – 12″ (152 mm – 305 mm)
• Chassis Width: 12.5″ (318 mm)
• Chassis Length: 22.5″ (572 mm)
• Shipping Weight: 108 lbs. (49 kg)
• Shipping Dimensions: 28″ x 15″ x 11″ (711 mm x 381 mm x 279 mm
