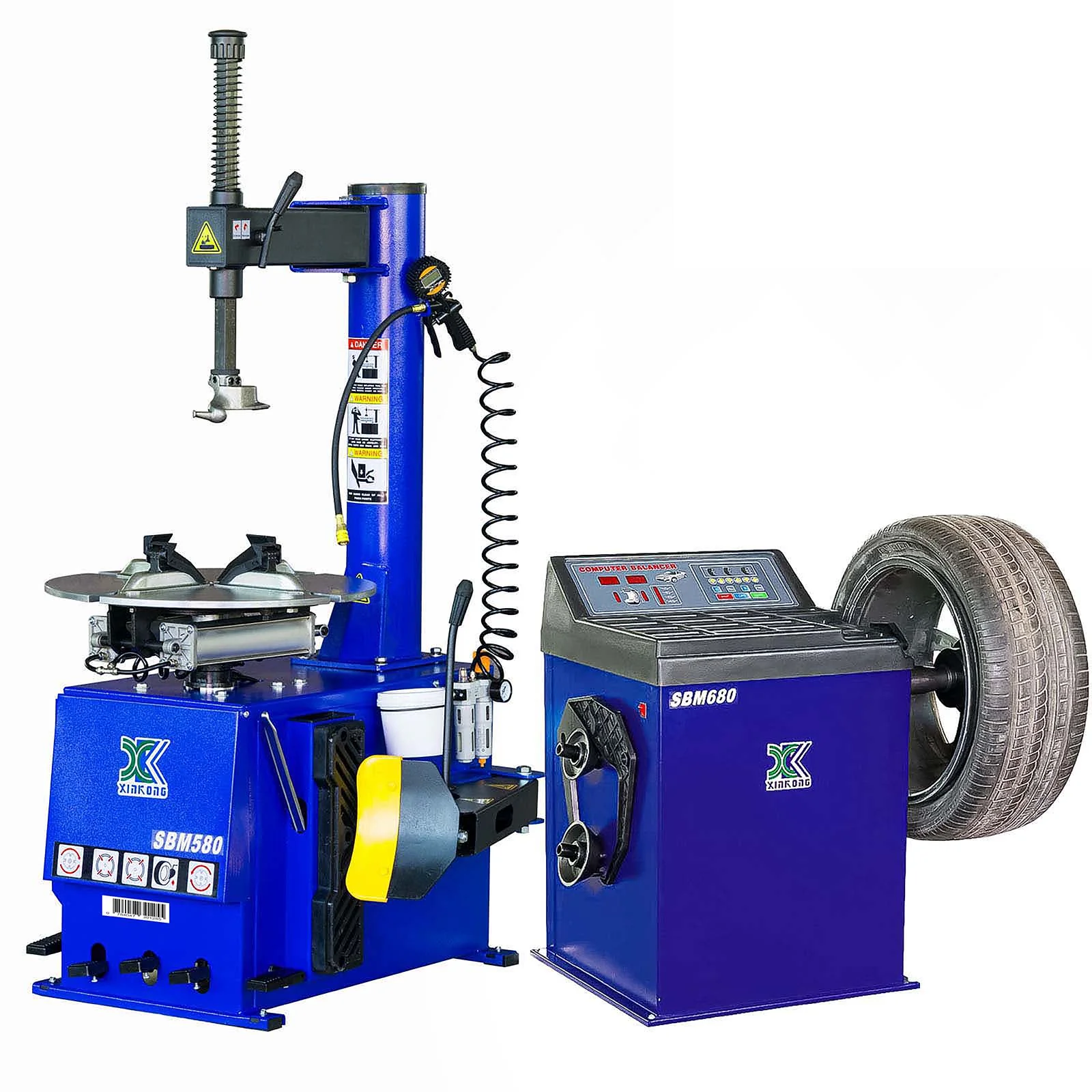

580 SEMI AUTOMATIC Tire Changer
DUAL TURNTABLE FOOT PETAL, MORE CONVENIENT TO OPERATE!!!
Rim clamping outside 10″-18″
Rim clamping inside 12″-21″
Motor Horsepower 1.5 HP Strong Motor
Xinkong uses quality motors as good as Brand Tire changer machines.
The bird head is designed with a protector and the claws are a lifetime warranty
Maximum Tire Diameter 37″ (960mm)
Maximum wheel Width 12″
Bead Break force 5600 lbs. pneumatic piston
Operating pressure 120-145 psi (8-10 bar)
Voltage 110V only
Includes 4 clamp protectors and Steel mount head
500 lbs. Shipping Weight
Blue Powder Coat Finish
Electronic Wheel Balancer 690 Features:
Self -includes:
Hardware hanging kits on the side of the device.
Preset to American standard measurements
Rim diameter: 10″ – 24″
Rim width: 1.5″ – 20″
Max. wheel diameter: 44″(1117 mm)
Max. wheel weight: 155 lb
cycle time: 4-7 seconds
Balancing accuracy: -1g to +1g
Noise: <70 dB
Power supply: 110V, 60HZ
Max. Power: 180-250W
Preset to American Standard Measurements
Standard Dynamic Mode, Static Mode, ALU 1-3 Mode, Motorcycle Mode
includes 4 centering cones
includes Quick Release Wing Nut
Blue Powder Coat Finish
